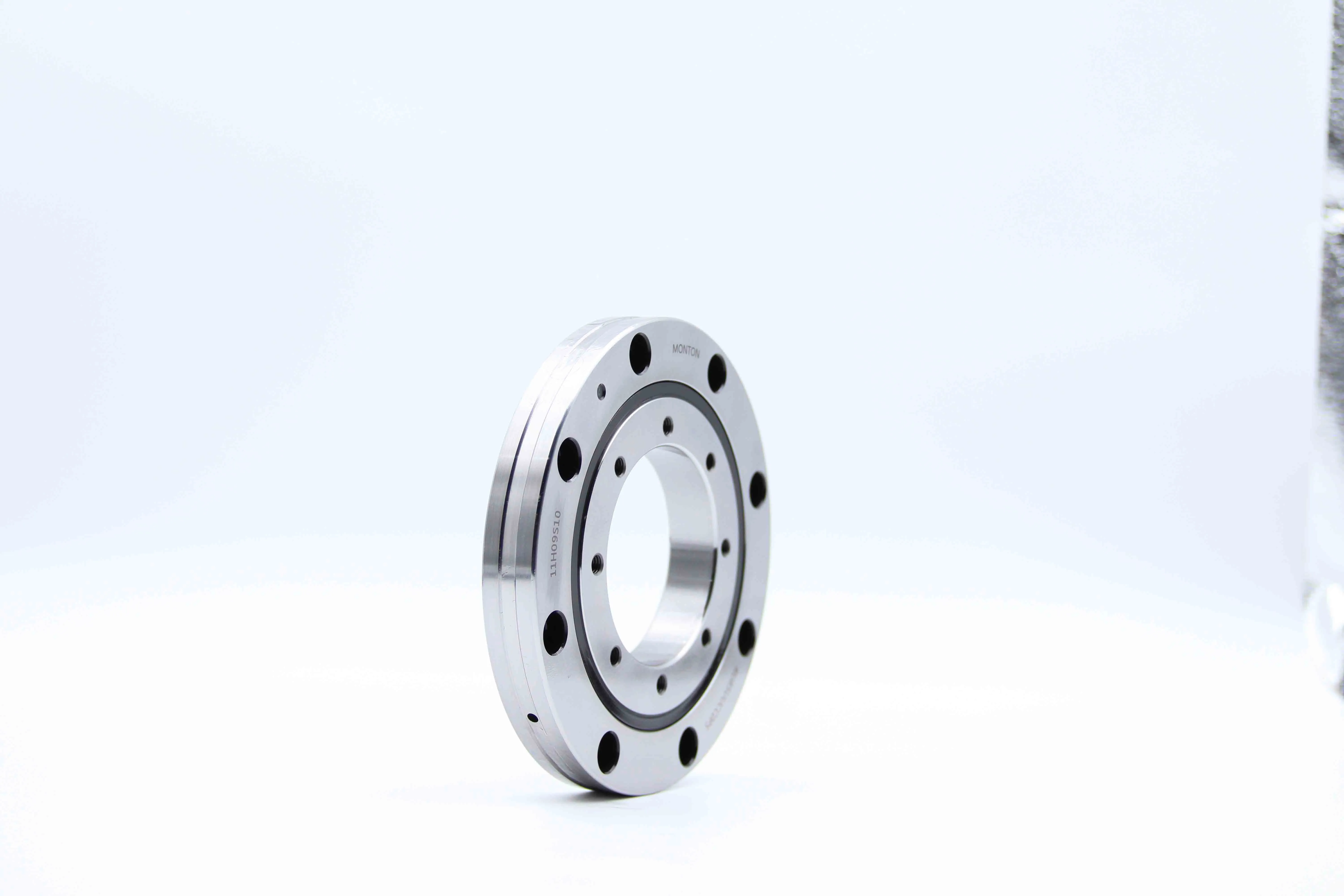

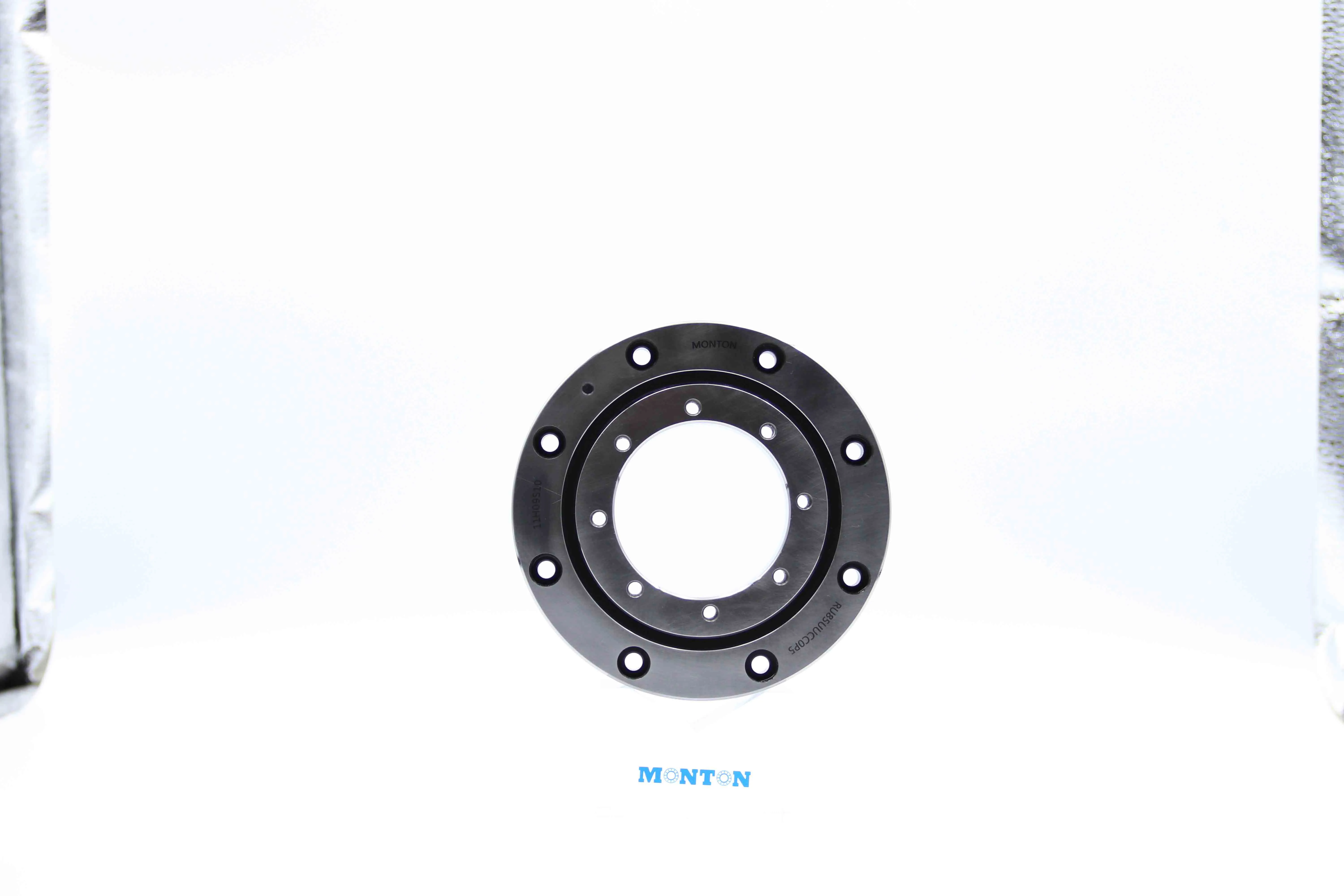

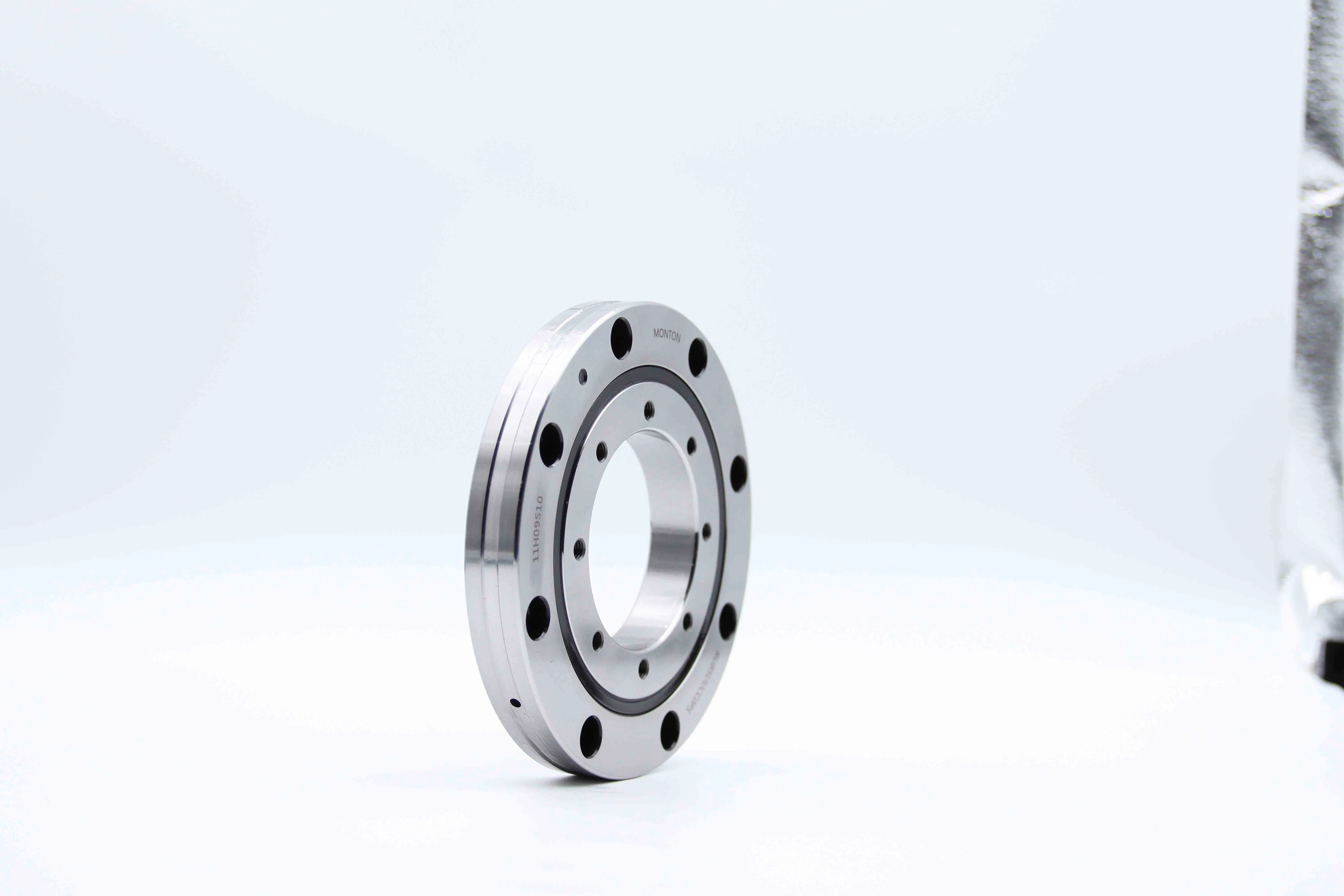

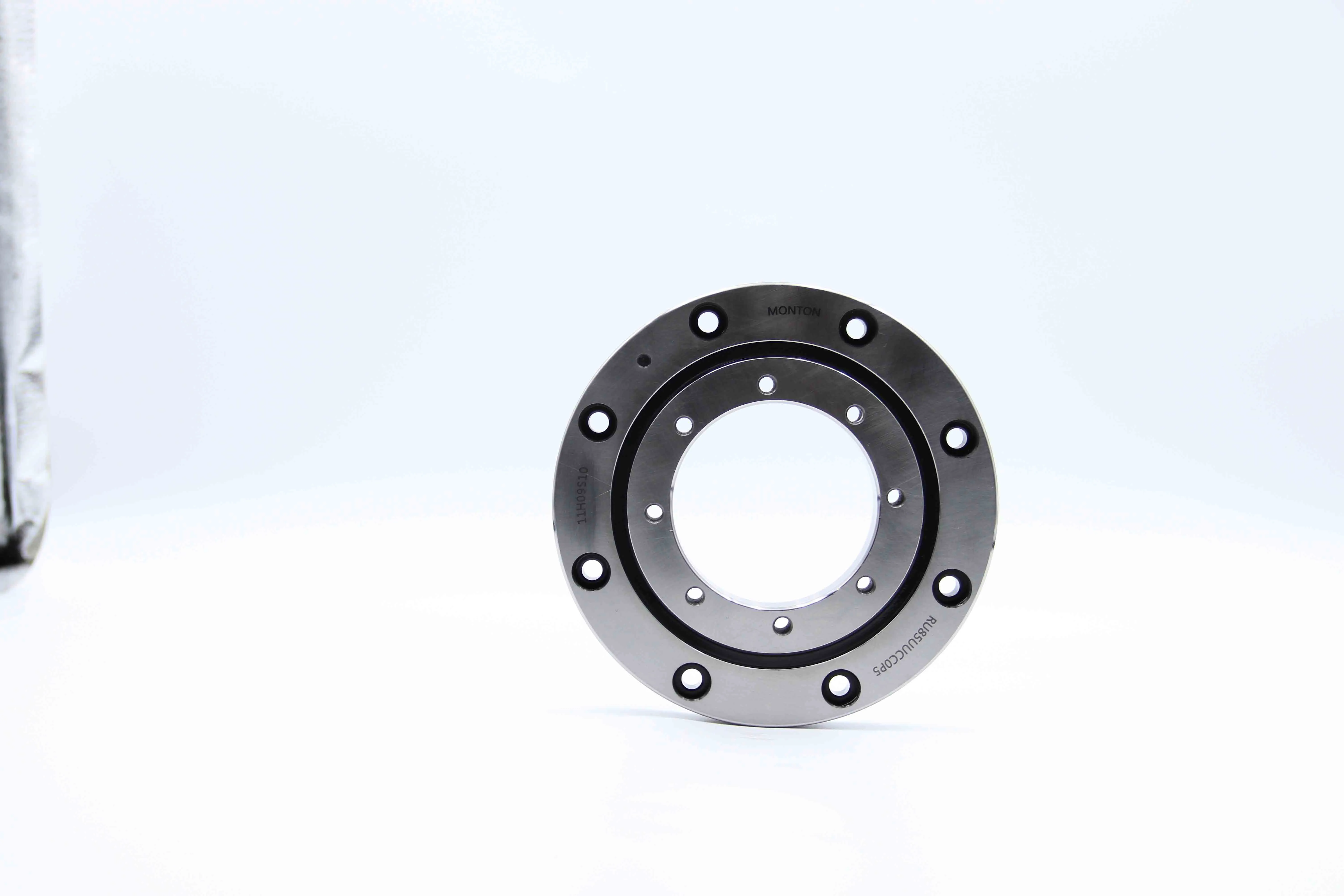

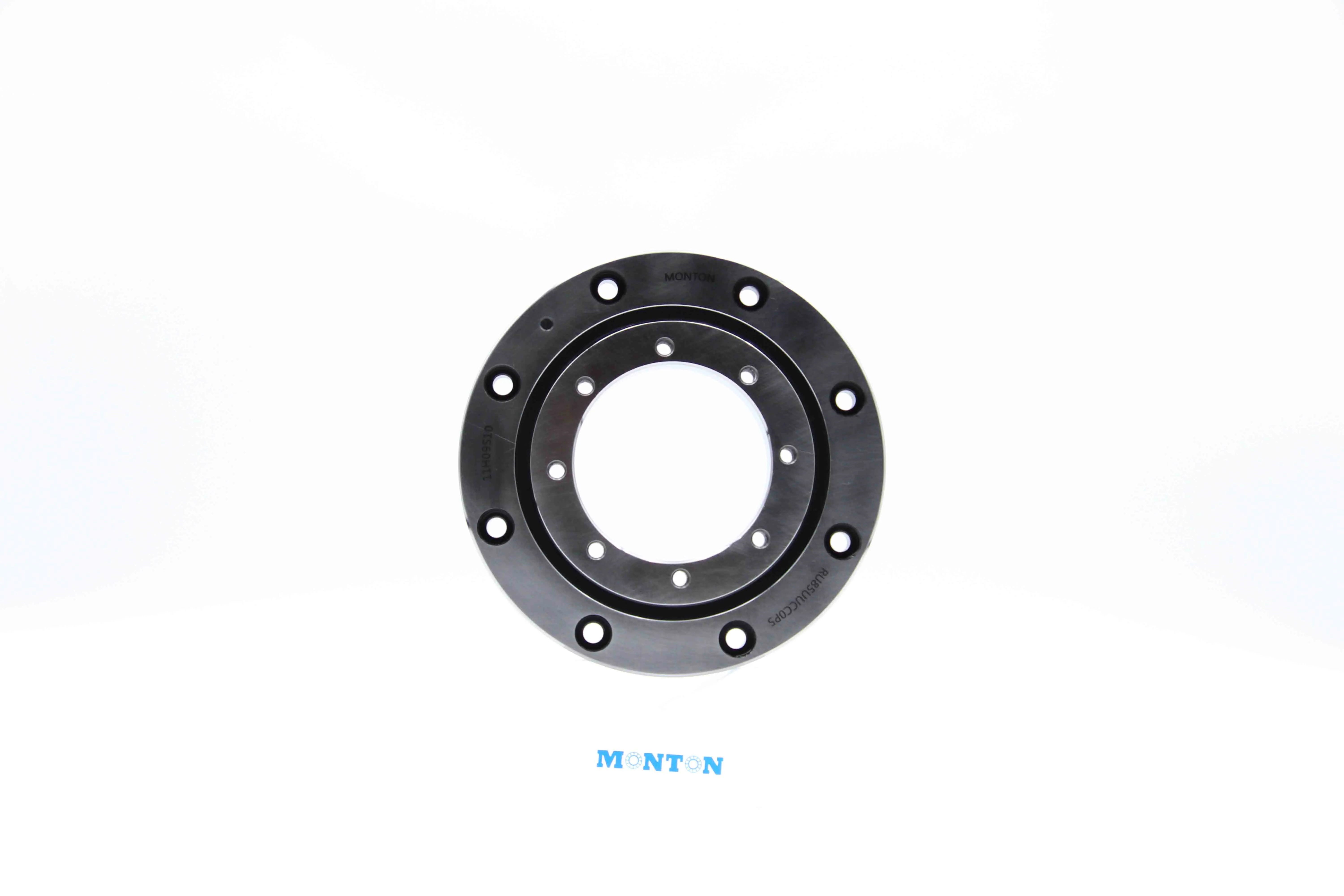

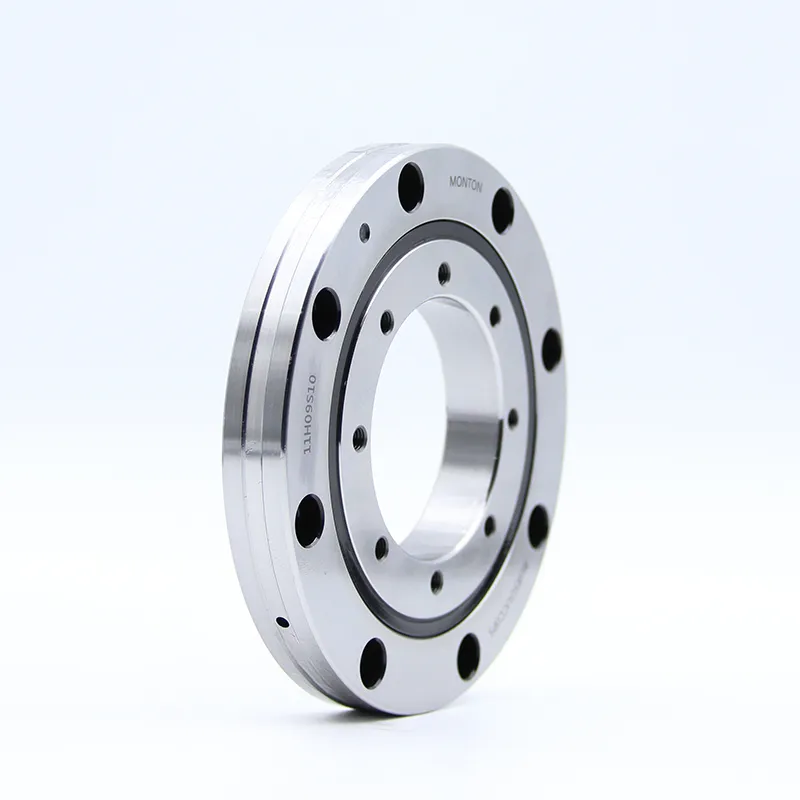

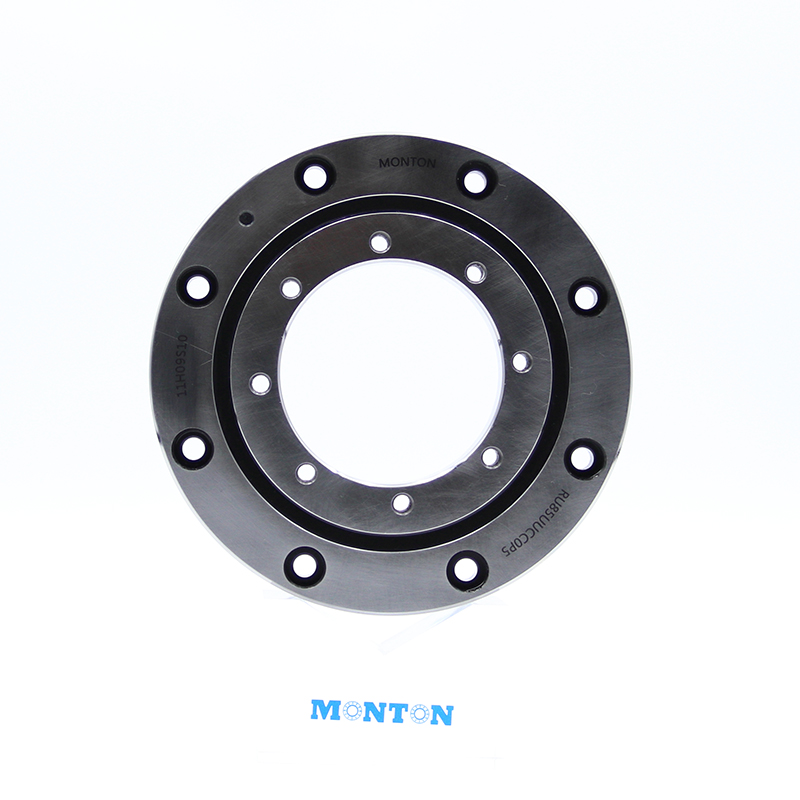

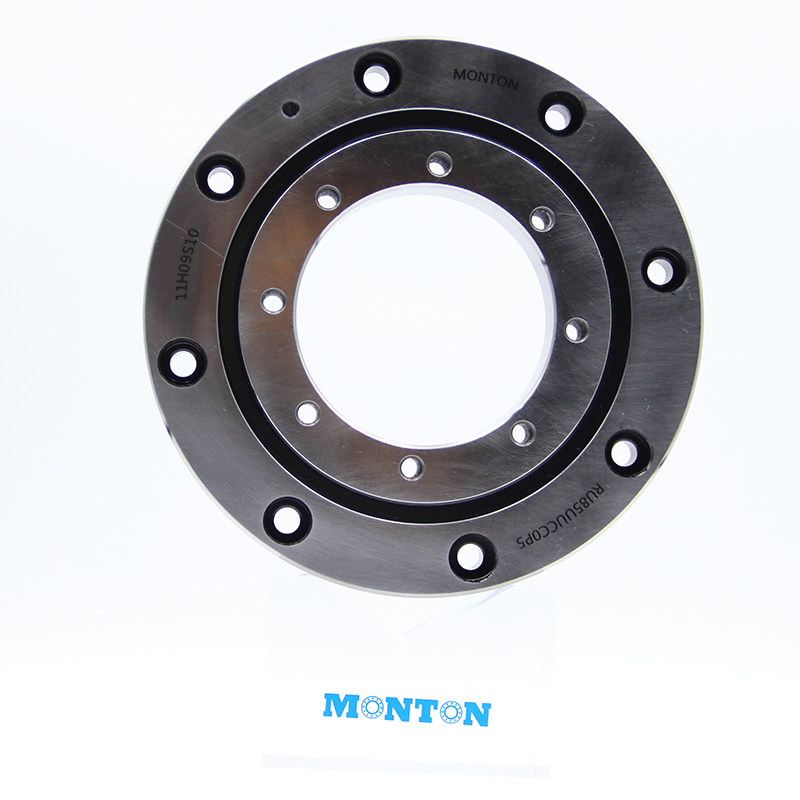

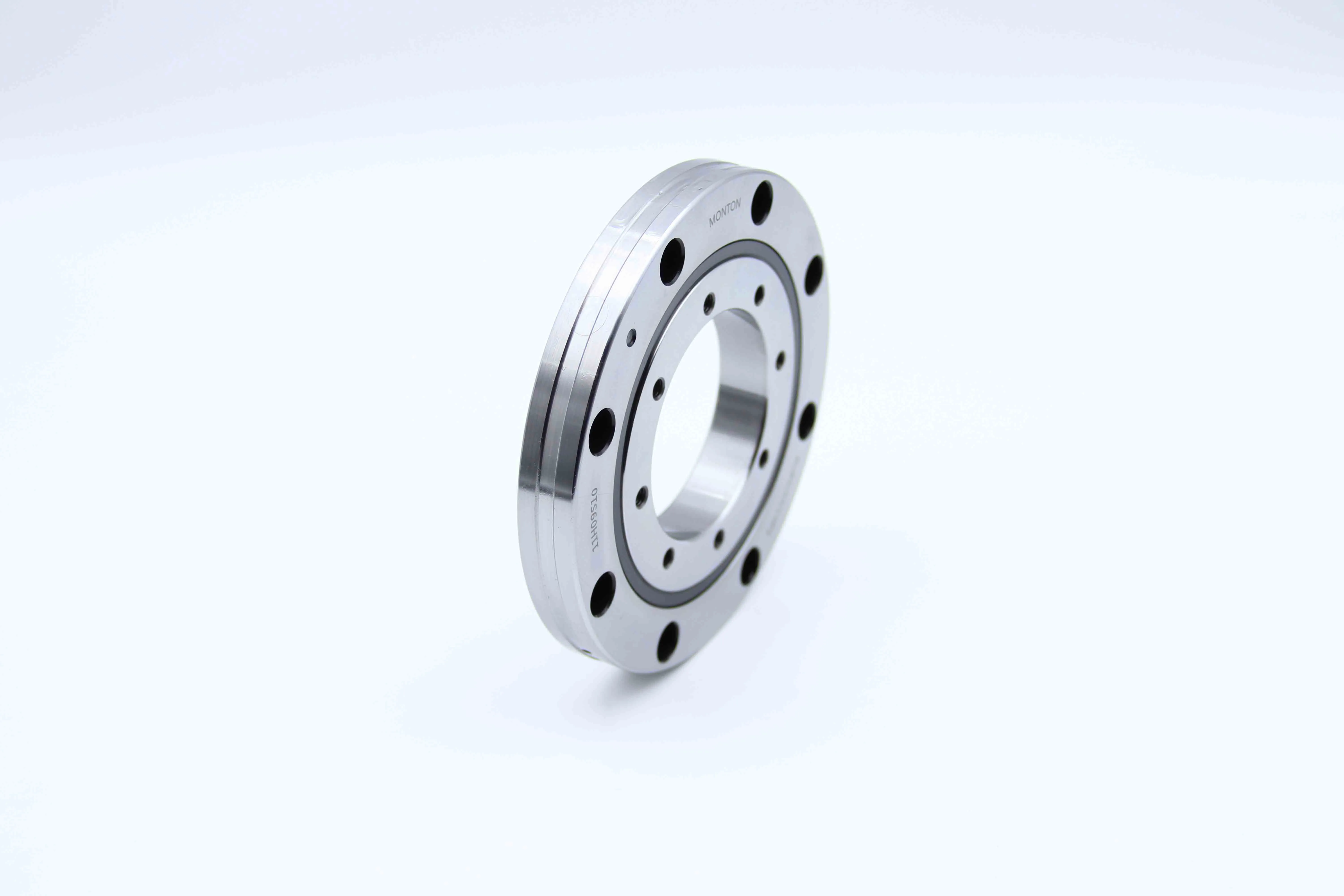

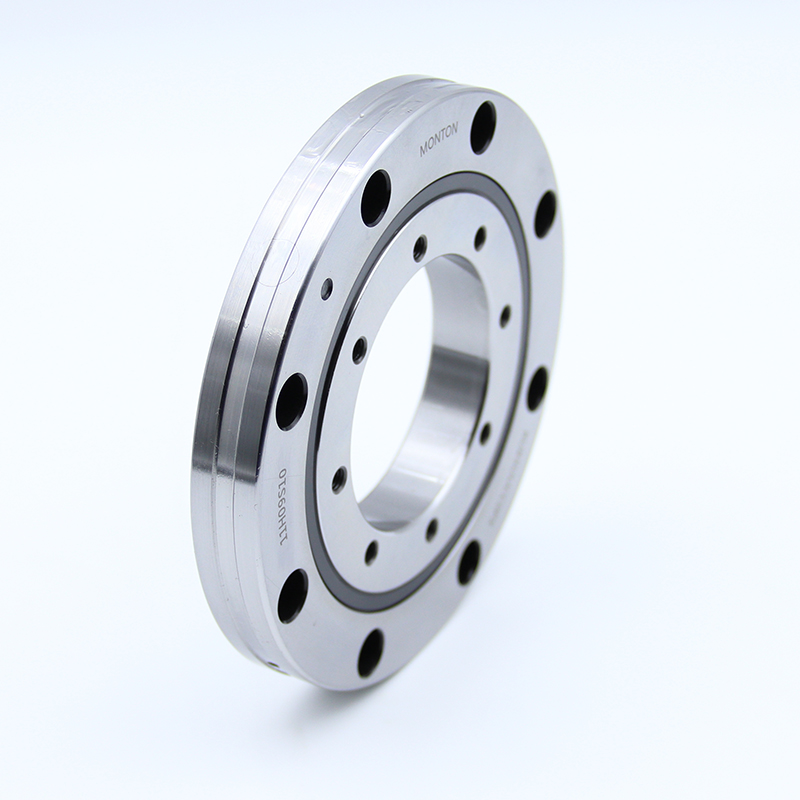

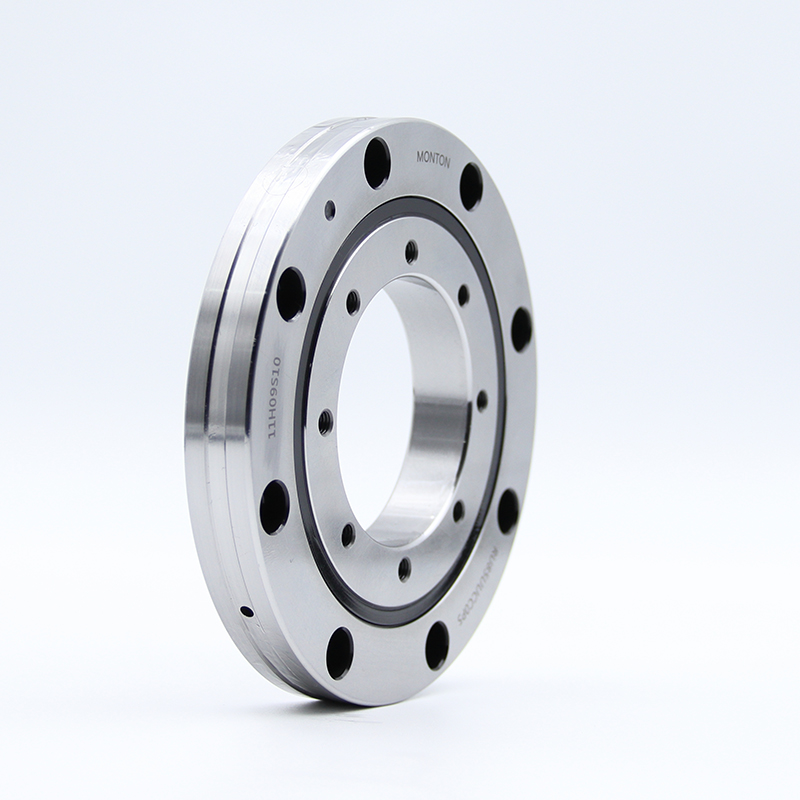

RU85UUCC0P5 Crossed roller bearing for harmonic drive

RU cross roller bearings are integrated with inner and outer rings. Both the outer and inner rings have mounting holes. No fixed flanges or support seats are required for installation. Installation has almost no effect on performance, so stable rotation accuracy and torque can be obtained. RU type cross roller bearings are suitable for occasions where the outer and inner rings rotate. Therefore, they are suitable for applications such as the joints or rotating parts of industrial robots, the rotary table of machining centers, the rotating part of manipulators, precision rotary tables, medical machines, measuring instruments, etc.

Case Details

Name	Crossed Roller Bearing
Seires	RU series
Brand	MONTON
Model	RU85UUCC0P5
d	55mm
D	120mm
B	15mm
Ring Material	Gcr15
R	0.6
Load rating Cr	20.3kN
Load rating Cor	29.5kN
Sealed	According to requirement
Weight	1KG
Design Structure	Crossed roller
Precision	P4,P5 or according to requirement
Vibration	ZV1, ZV2, ZV3, or as requirement
Clearance	C0, C2, C3, or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Machine tools Centrifuges Manipulators Hoists Luggage scanner Medical technology Antennas such as radar systems and telescopes Automation, such as robot and handling systems
