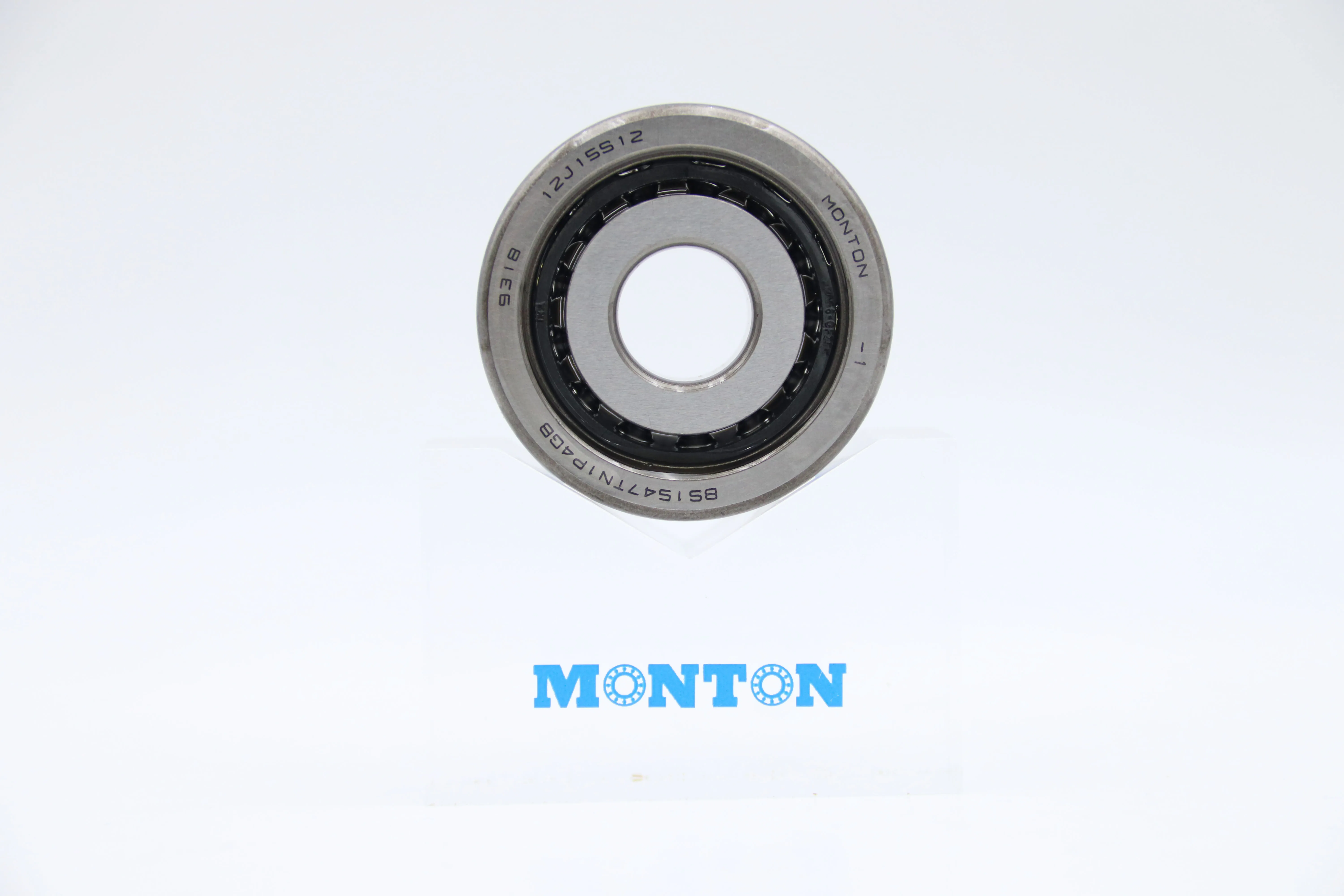

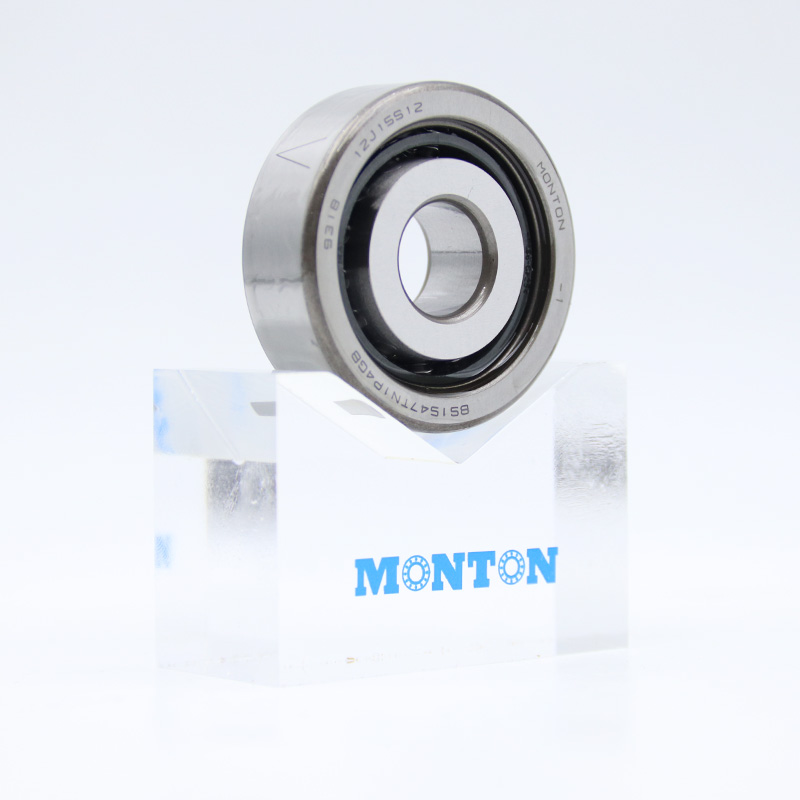

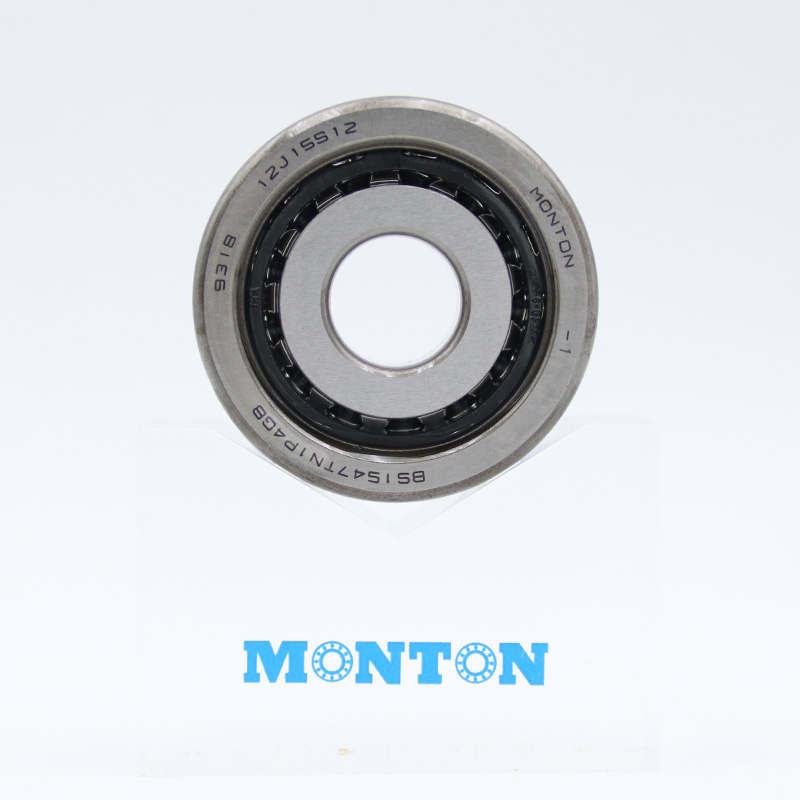

BS1547TN1P4GB Ball Screw support bearings

BS1547TN1P4GB is a thrust angular contact ball bearing produced by MONON, designed specifically for ball screw support, with high precision and high-speed characteristics. Its inner diameter is 15mm, outer diameter is 47mm, contact angle is 60 °, and it adopts PN7B precision standard (equivalent to ISO4 level). This bearing can be combined into multiple columns for use through the "v" mark on the outer ring, and is suitable for precision equipment such as machine tool spindles and machining centers. Commonly used in CNC lathes, boring machines, machining centers, and gear milling machines; Rolling machines, packaging and printing machines, etc.

Case Details

Name	Ball Screw support bearings
Brand	MONTON
Model	BS1547TN1P4GB
Contact angle	60°
rmin	1mm
Bore diameter	15mm
Outside diameter	47mm
B(width)	15mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Ca	27.6KN
Basic static load rating Cor	32KN
Limiting speed for nG Grease	6900 1/min
Limiting speed for nG Oil	9200 1/min
Sealed	Open/Sealed
Row	Single row
Weight	0.15KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	Used in various processing equipment such as CNC machine tools, lathes, milling machines, grinders, etc
