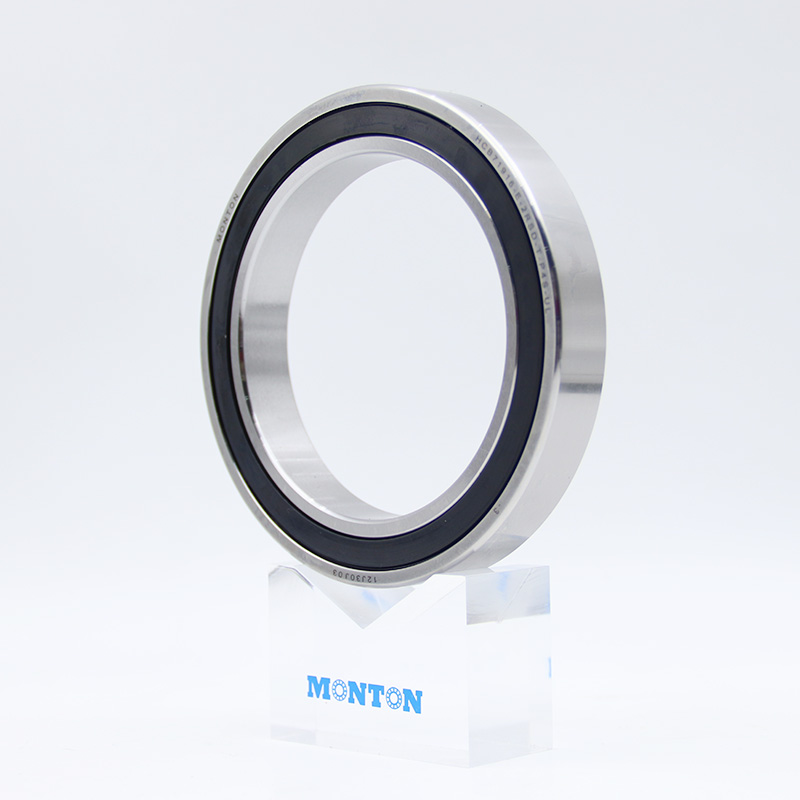

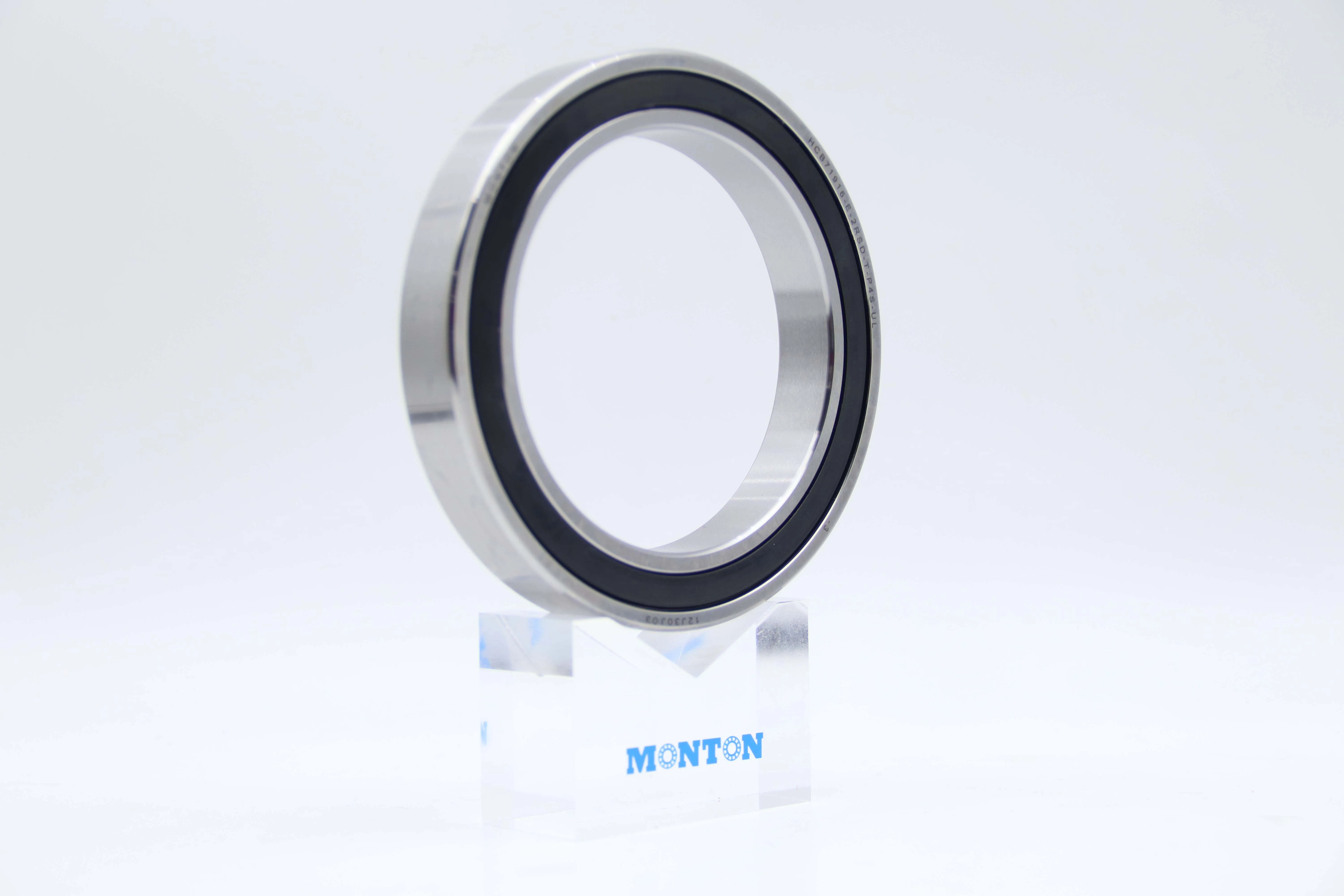

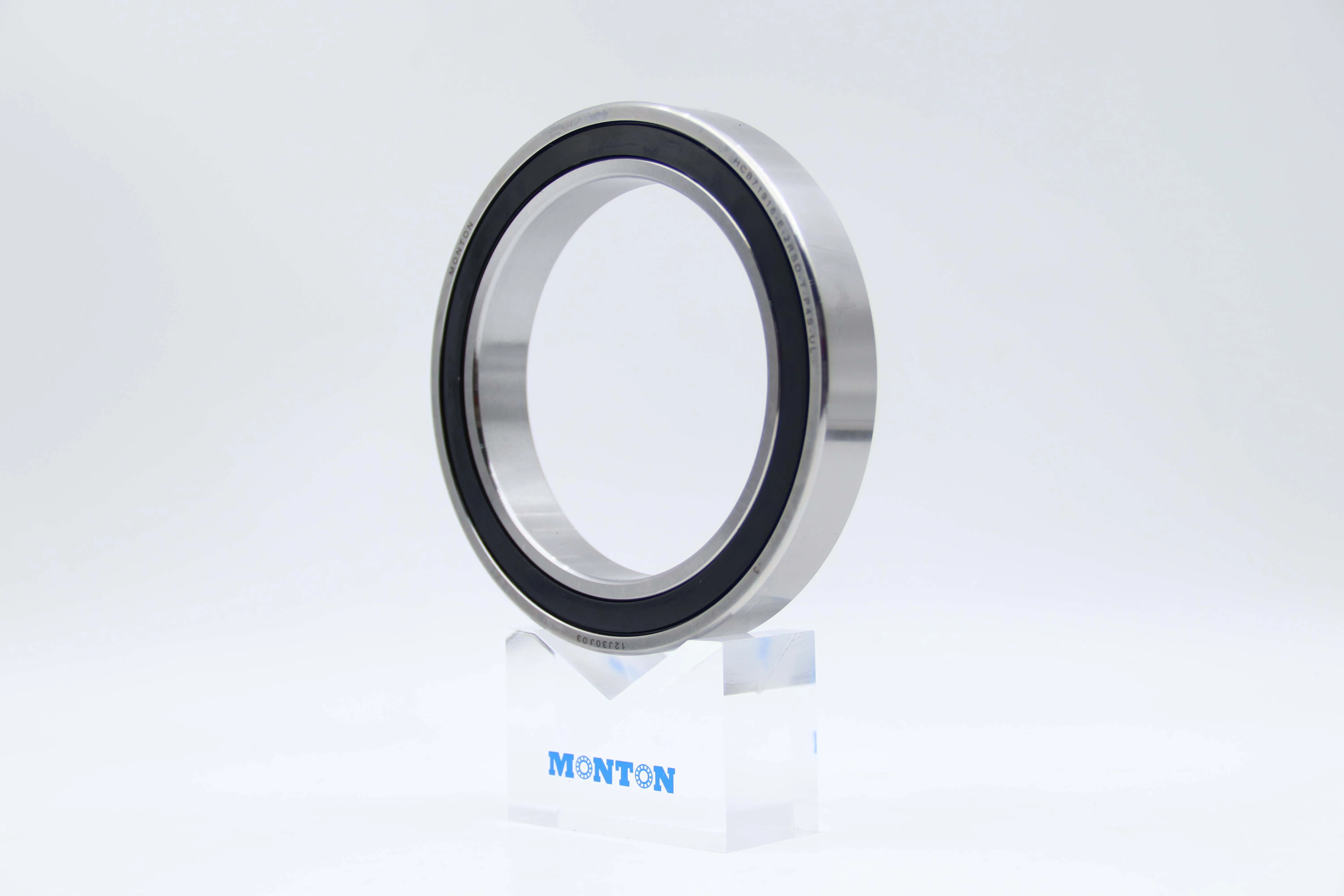

HCB71916-E-2RSD-T-P4S-UL Angular Contact Ball Bearings

HCB71916-E-2RSD-T-P4S-UL precision angular contact ball bearing is a high-end bearing product of MONTON. The material is ceramic balls, resin cage, P4 level precision, grease lubrication speed of 19000rpm, oil lubrication speed of 30000rpm. It is commonly used in the design of high-speed and high-precision equipment, such as machine tools, spindles, plastic mixers, food sterilization equipment, dynamic pressure guide rails, elevators, cutting equipment, etc.

Case Details

Name	Angular Contact Ball Bearings
Brand	MONTON
Model	HCB71916-E-2RSD-T-P4S-UL
Contact angle	25°
Ball Dia.	9.525 mm
Bore diameter	80mm
Outside diameter	110mm
B(width)	16mm
Ring Material	Gcr15 Bearing steel
Cage Material	Nylon
Basic dynamic load rating Cr	34000N
Basic static load rating C0r	23000N
Sealed	Open/Sealed
Row	Single row
Weight	0.31KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Accordingly
Application	1. Machining center 2. Milling machine/lathe/boring machine 3. External cylindrical and surface grinders 4. Cutting or polishing stone and glass Machine tools 5. Semiconductor industry, etc., fault detection unit on silicon wafers 6. Marine gyro stabilizers 7. Telescopes 8. Gas turbine engines 9. Racing/supercar wheels 10. Medical equipment 11. Spindle for PCB drilling 12. Woodworking machine tools 13. Turbomolecular pumps
