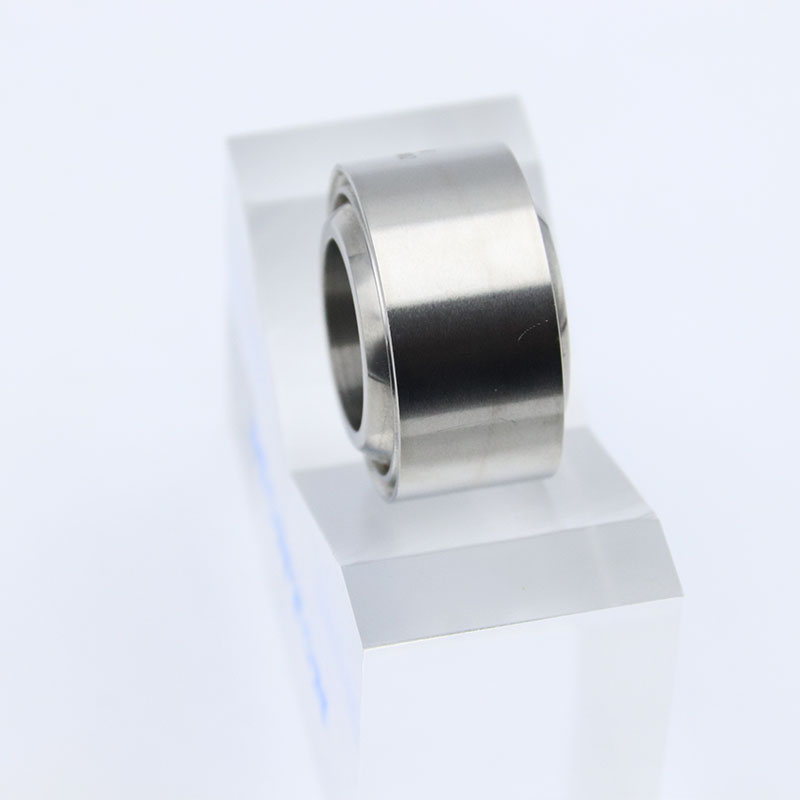

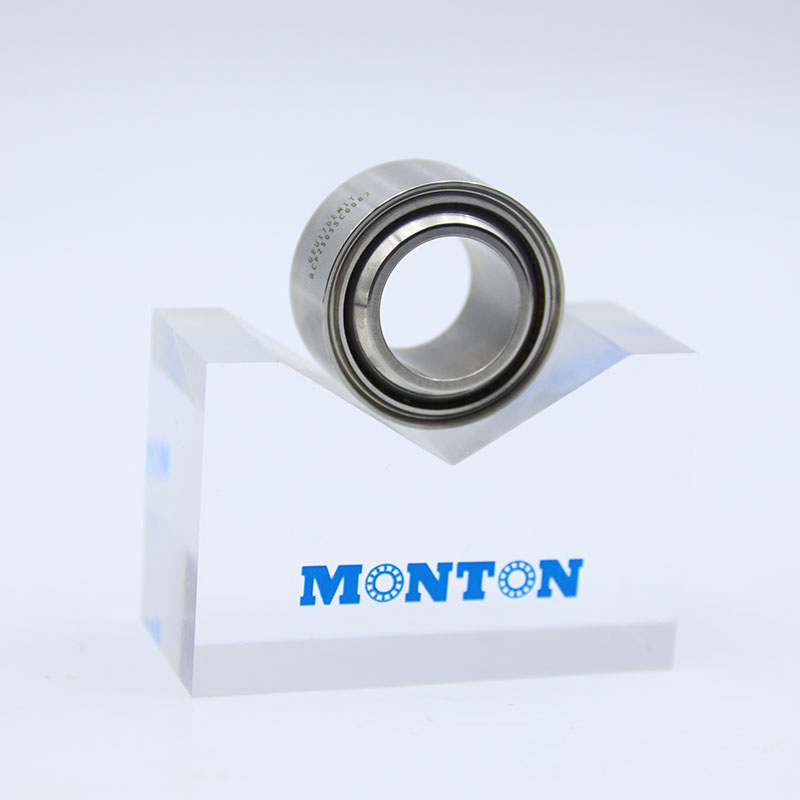

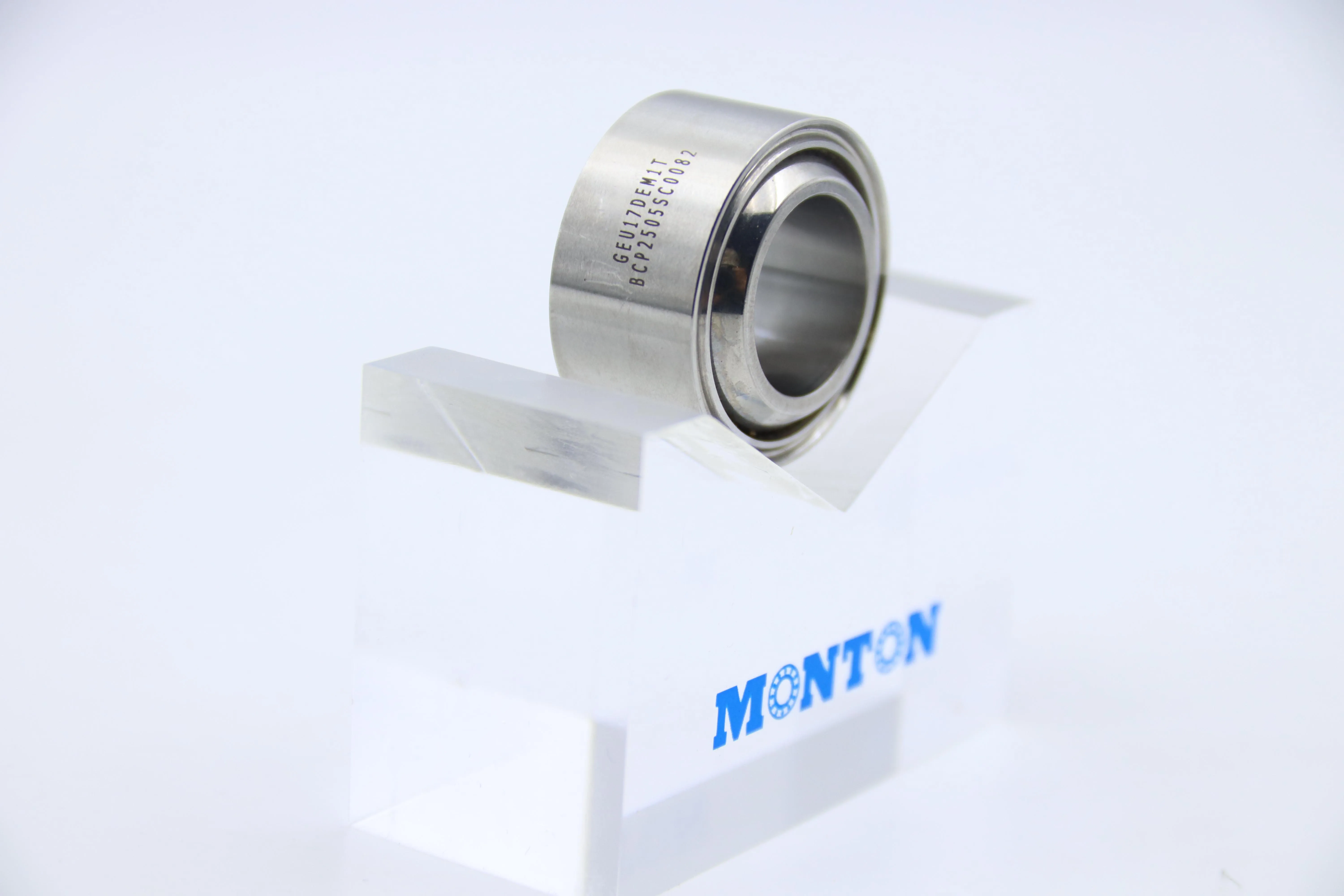

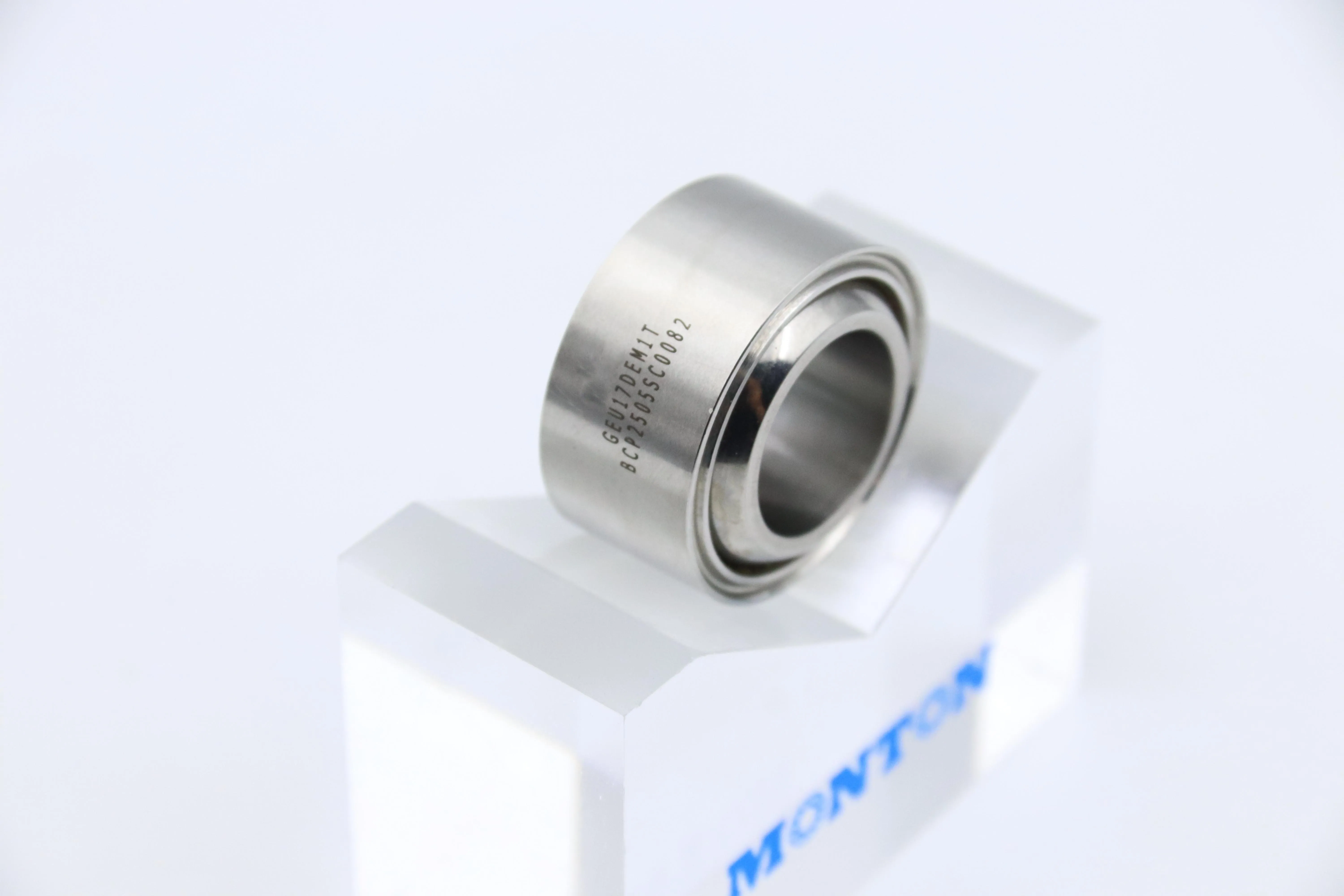

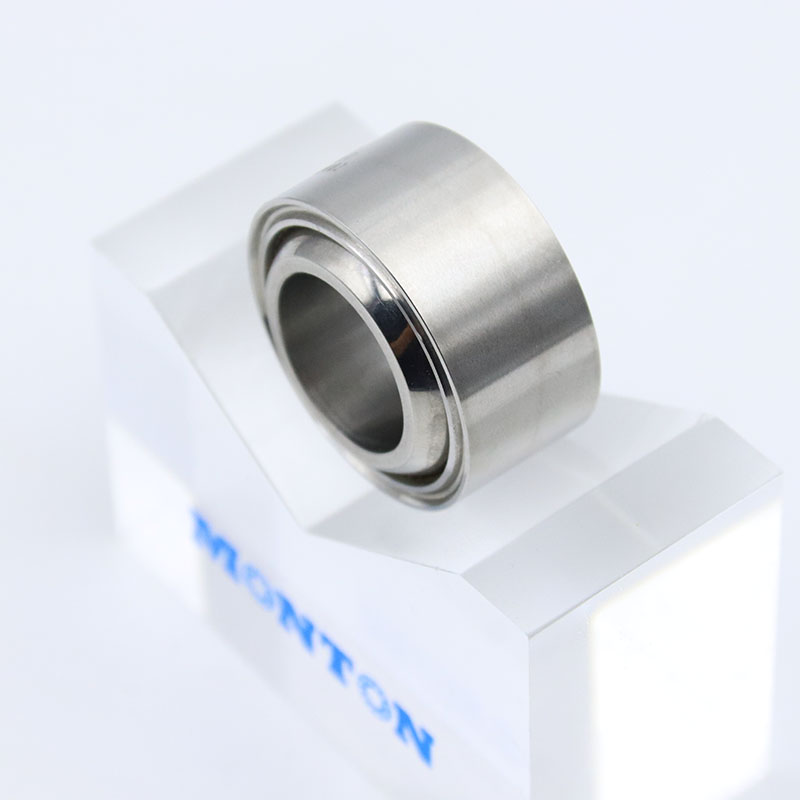

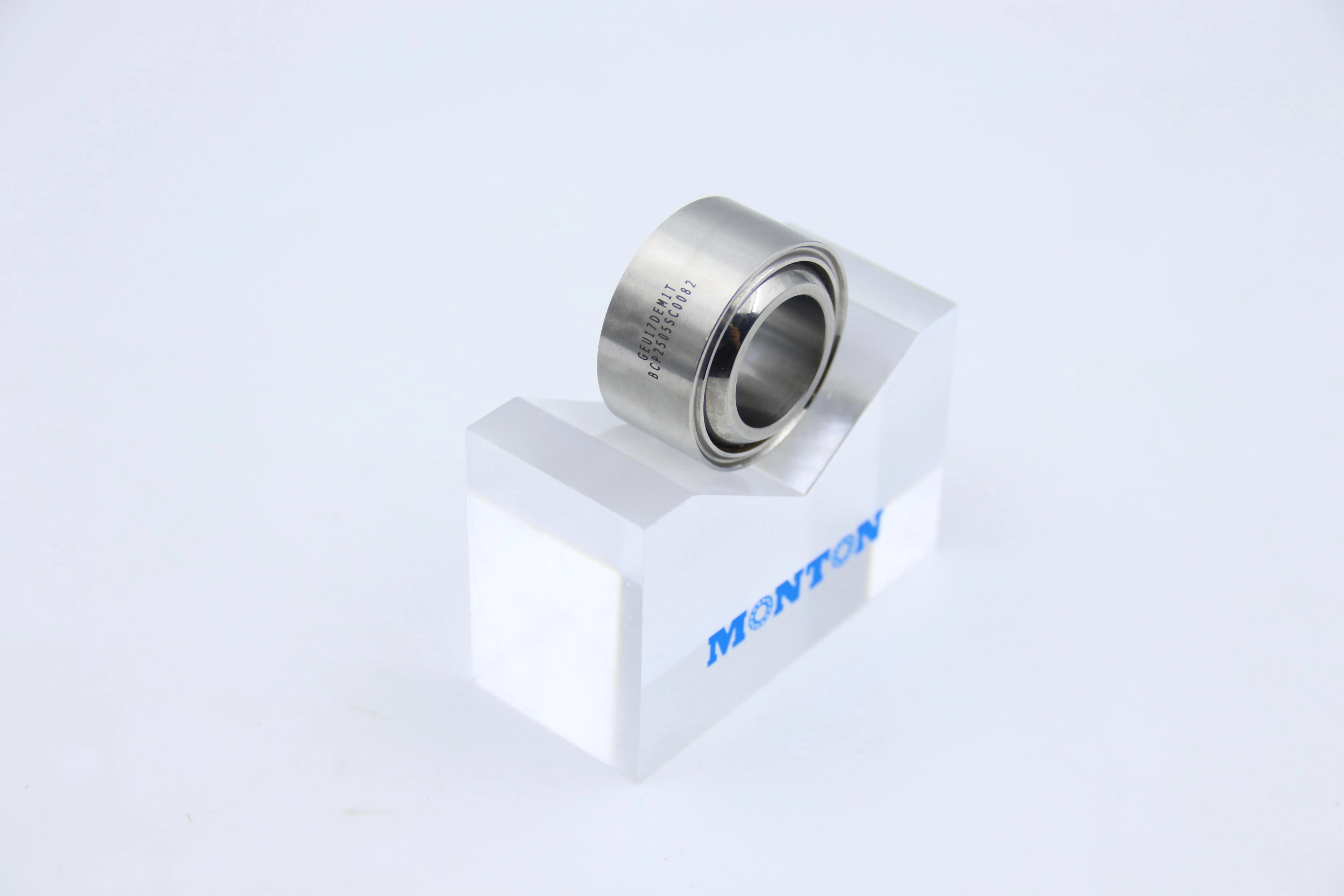

LS2585R17P Aerospace spherical bearings

Aerospace joint bearings are key moving components of aircraft, responsible for transmission, support, and adjustment functions. MONTON aerospace joint bearings can meet high reliability and long life requirements in extreme environments. The roundness error of aviation bearings is ≤ 1 μ m, and the surface roughness Ra is ≤ 0.2 μ m. Space bearings require radiation resistance and vacuum environment operation, and the lubricant used is perfluoropolyether (PFPE) to prevent volatilization. At present, our company can provide landing gear bracket rod end bearings, engine high-speed bearings, etc.

Case Details

Name	Aerospace spherical bearings
Brand	MONTON
Model	LS2585R17P
Other model	GEU17DEM1T
Bore diameter	17mm
Outside diameter	30mm
B(width)	18mm
Ring Material	Alloy steel/ 440C
Cage Material	Special cage
Axial Static Limit Load	21KN
Radial Limit Load Rating	106KN
Weight	0.039KG
Quality standard	ISO9001: 2000/SGS
Package	single box
Original	Luoyang
Delivery date	Accordingly
Application	Aerospace ,Airplane
