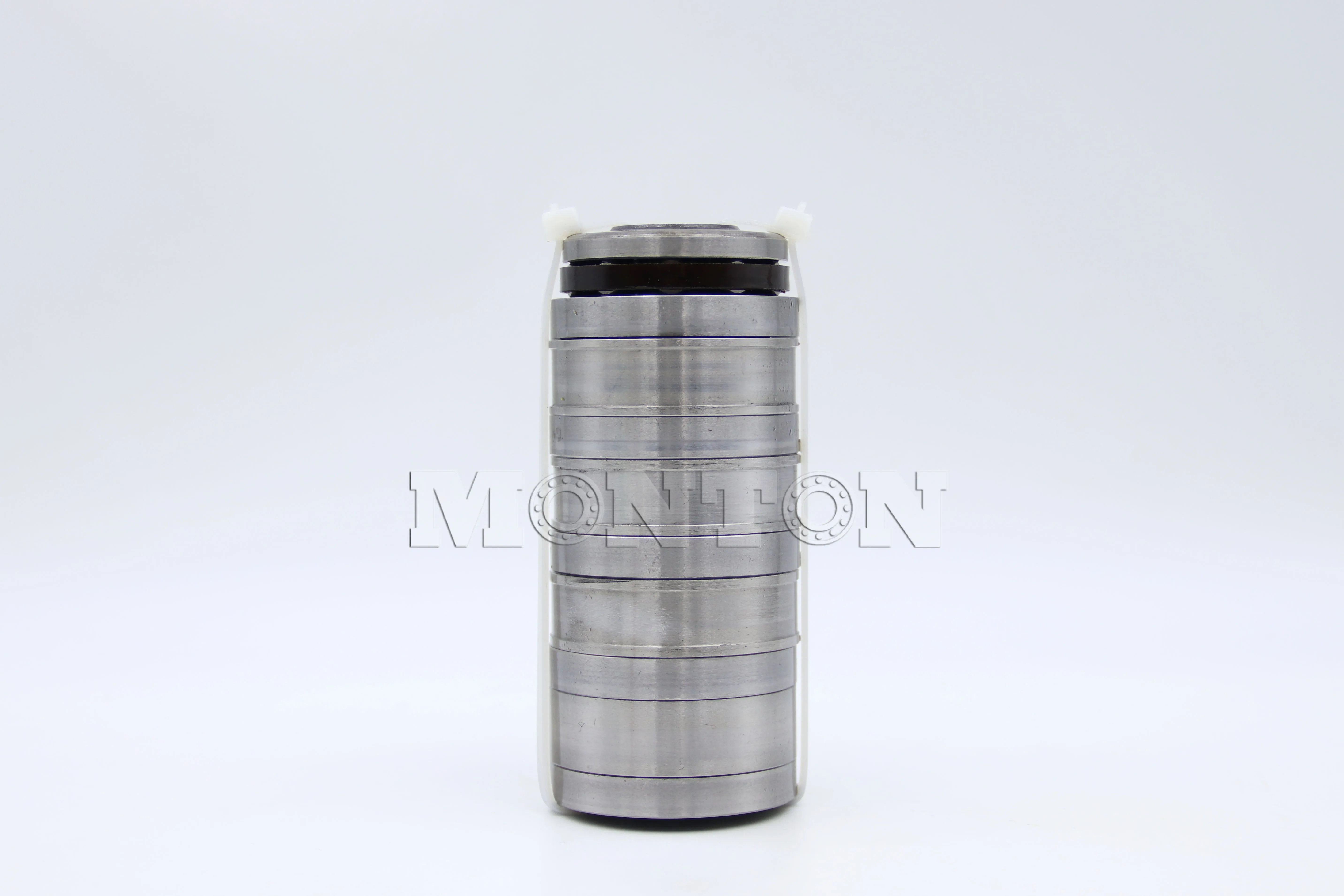

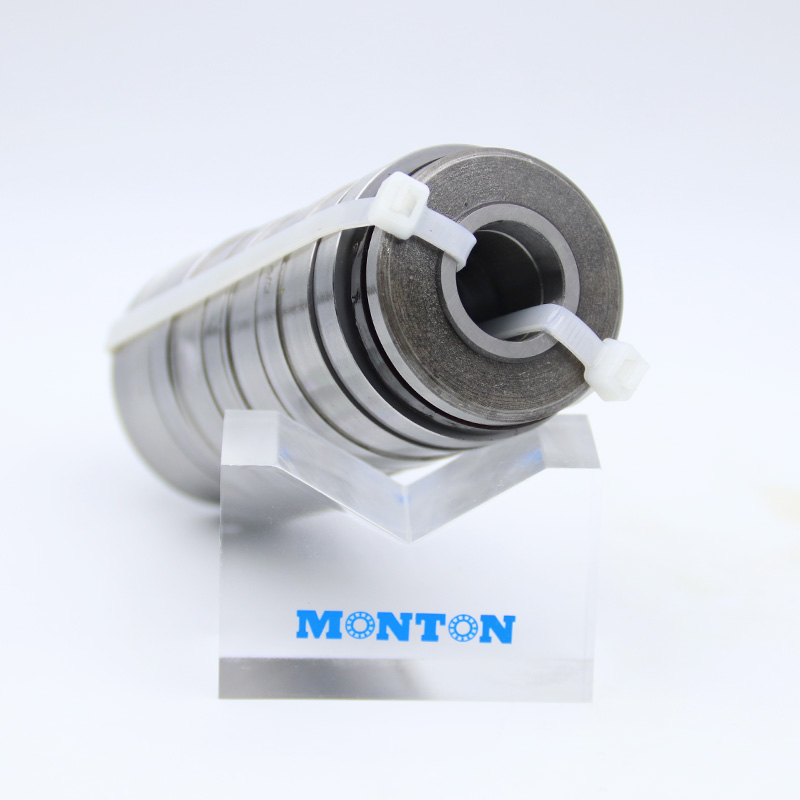

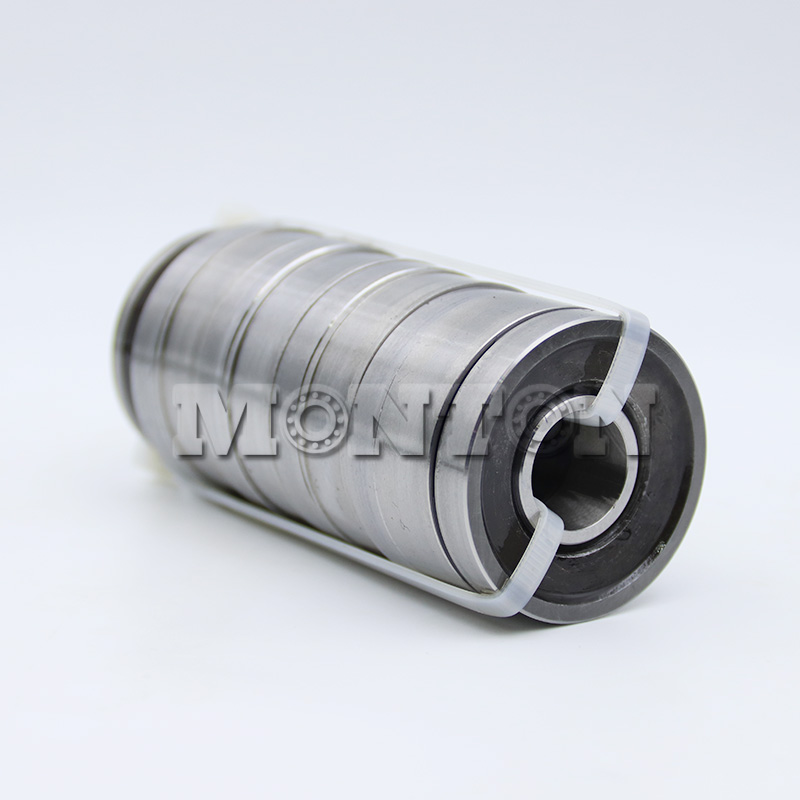

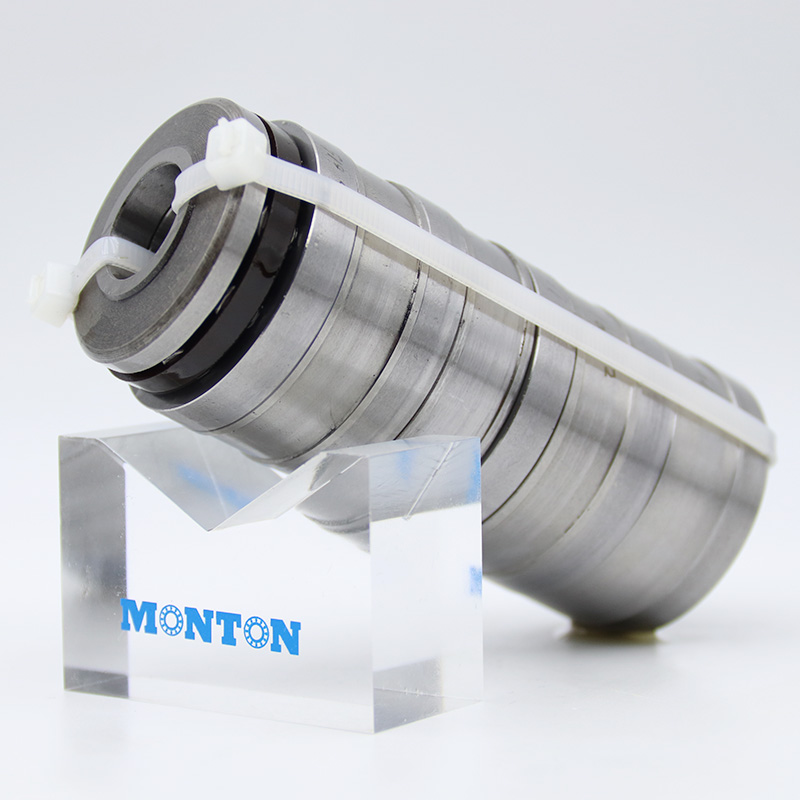

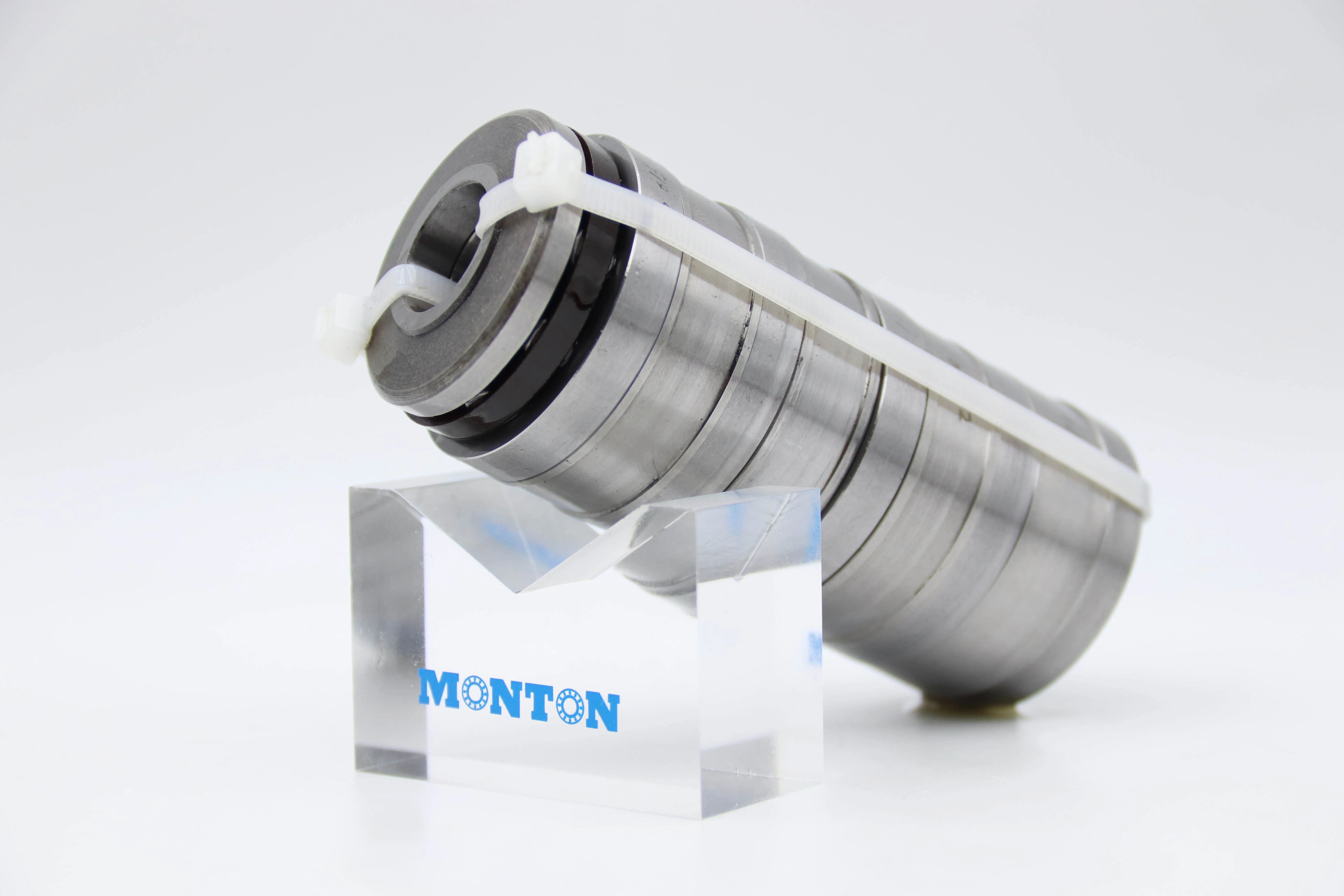

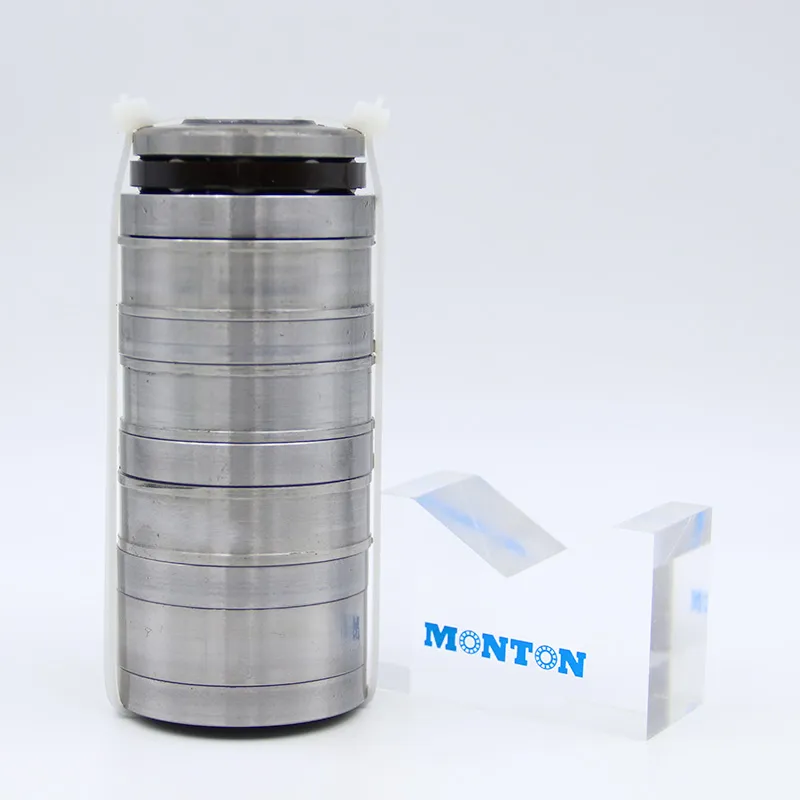

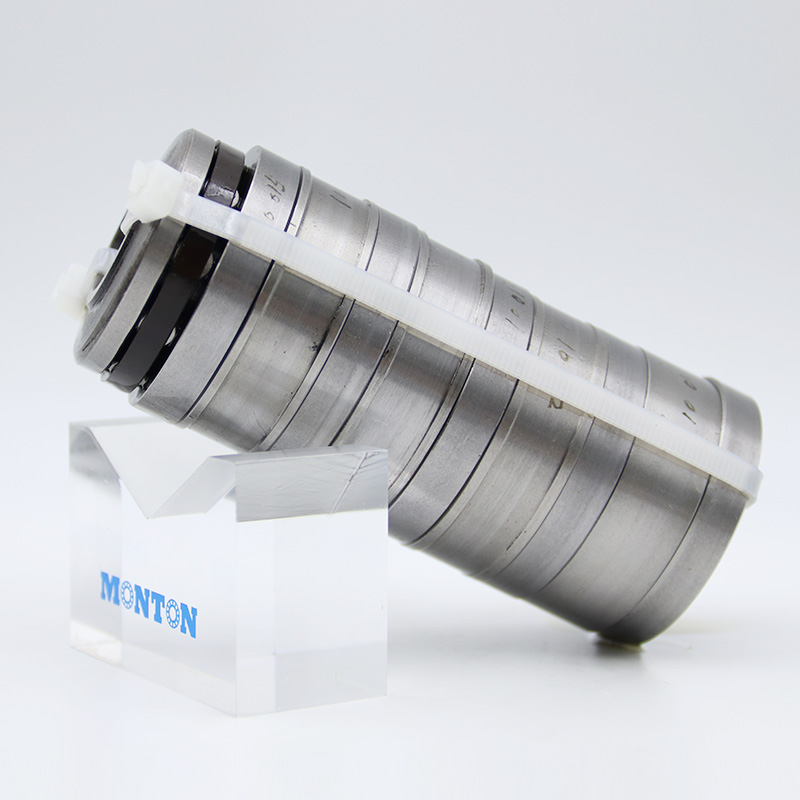

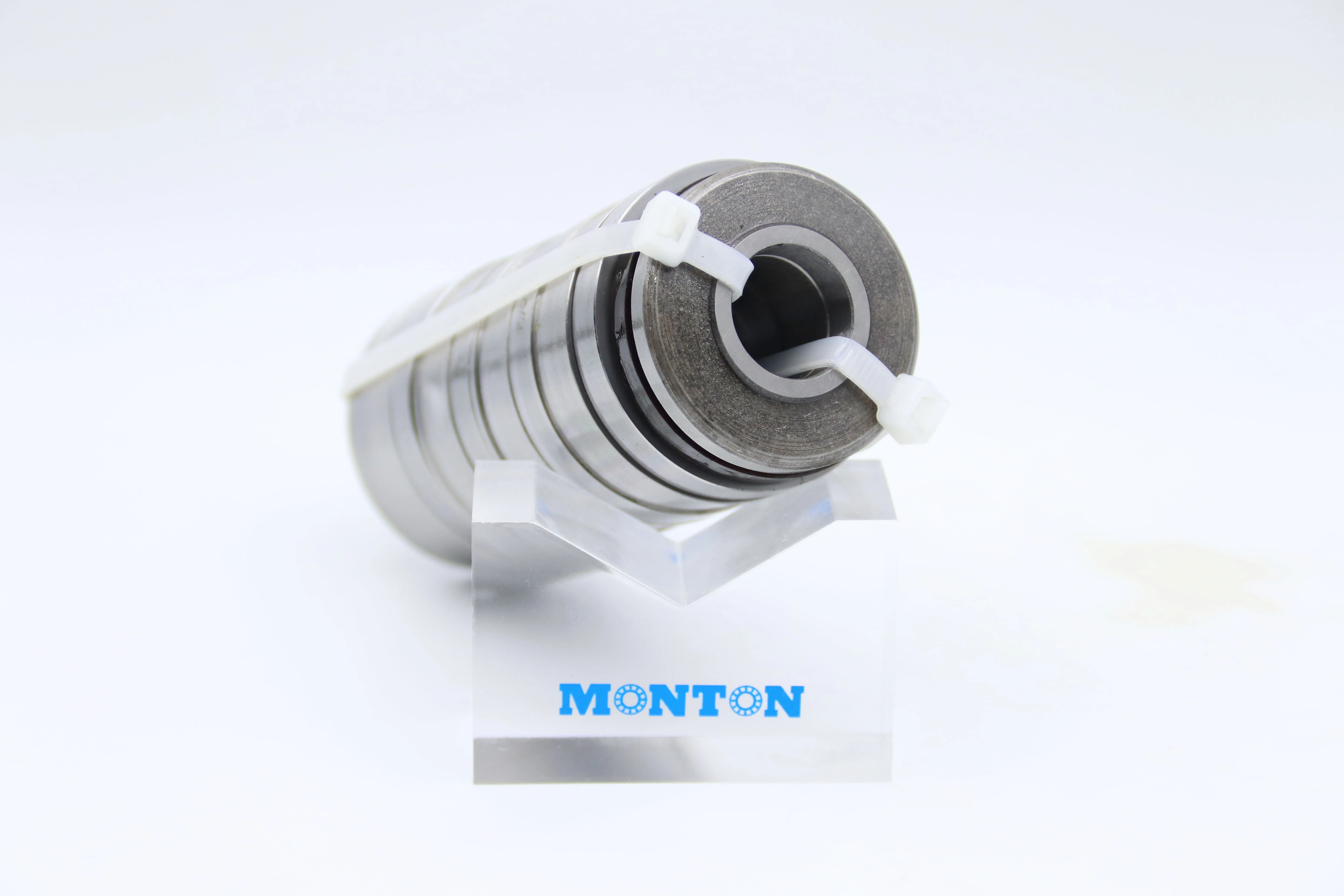

M5CT1949 Multi Stage cylindrical roller thrust bearings

M5CT1949 is a series thrust cylindrical roller bearing, formerly known as T5AR1949E. Its main dimensional parameters are: inner diameter d=19mm, outer diameter D=49mm, height H=104mm. The rated dynamic load Cr of this bearing is 190KN, the rated static load Cor is 552KN, and the weight is about 0.8KG. This bearing is made of high carbon chromium bearing steel (GCr15), with a heat treatment hardness of HRC58~62, and has strong wear resistance and impact resistance, with a long service life. It belongs to a separated structure, with detachable parts, and installation requires careful operation according to the numbering sequence provided by the manufacturer. M5CT1949 bearings are mainly used in industrial fields such as heavy machinery, mining machinery, and plastic extruders that require significant axial loads.

Case Details

Name	Multi Stage cylindrical roller thrust bearings
Seires	Multi row cylindrical roller
Brand	MONTON
Model	M5CT1949
Equal Designations	T5AR1949
d	19mm
D	49mm
H	104mm
Ring Material	Gcr15
Cage Material	Nylon/Aluminum
Load rating Cr	190kN
Load rating Cor	552kN
Shaft Tolerance	f6
Weight	0.9KG
Design Structure	cylindrical roller
Precision	P5
Assembly	Each bearing to be accompanied by instructions for assembly of individual components.
Clearance	C0 or as customer requirement
Quality standard	ISO9001: 2000/SGS RoHS ect.
Package	single box
Original	Luoyang
Service	OEM
Delivery date	Stock
Application	Extruder Gearboxes Counter-rotating twin screw extruders Parallel twin-screw extruder for plastic pellets Three screw extruder oil expeller
